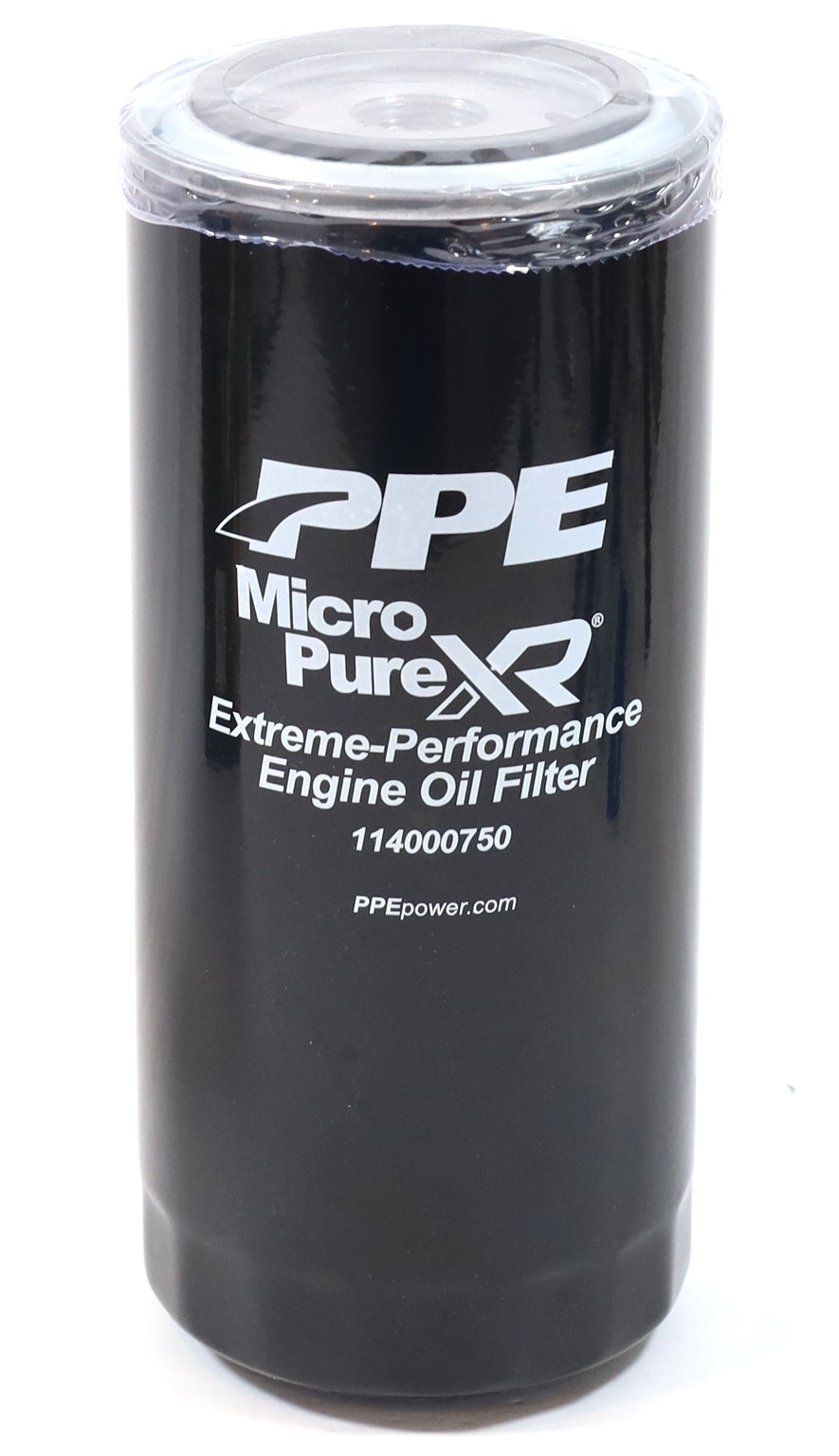

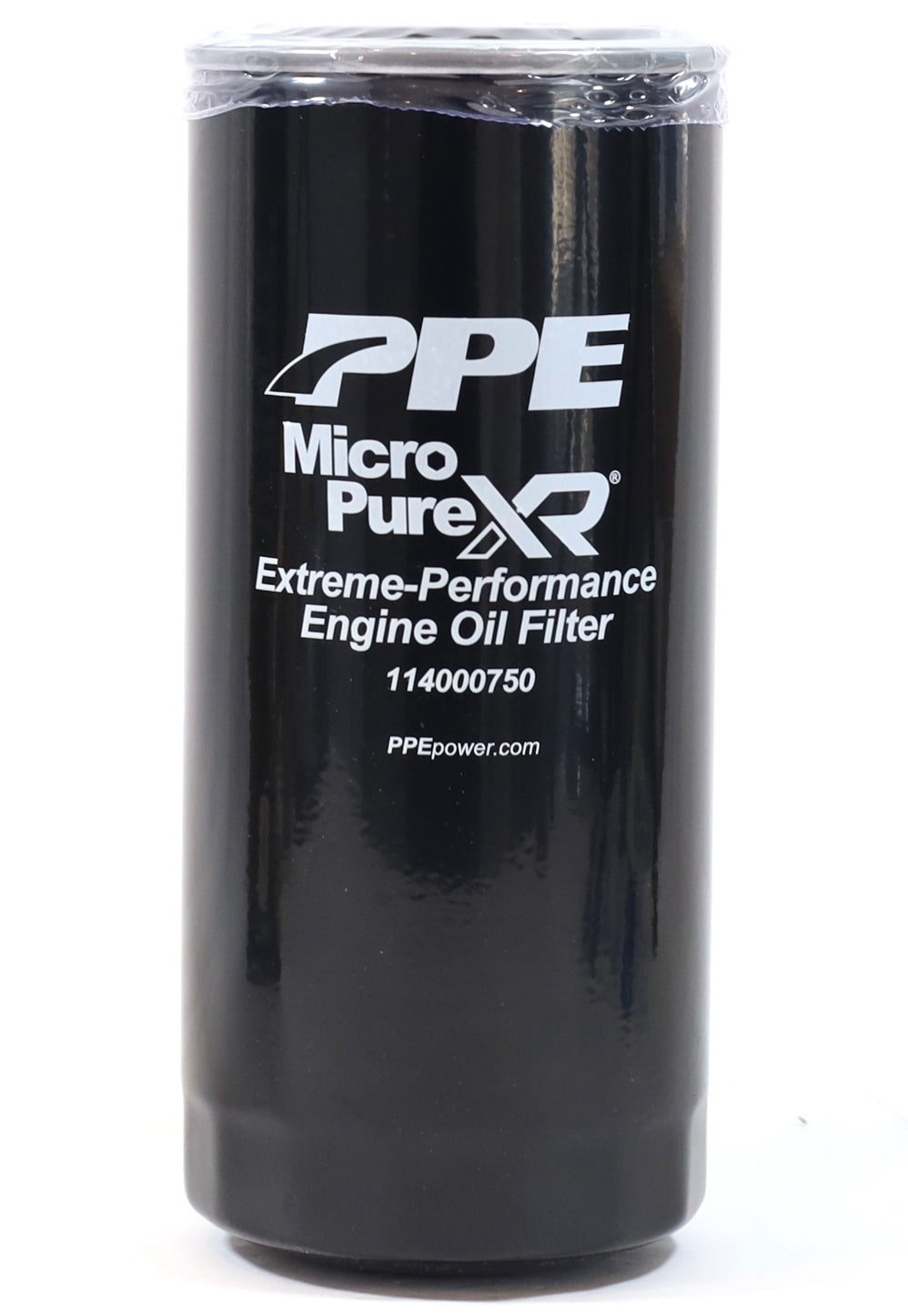

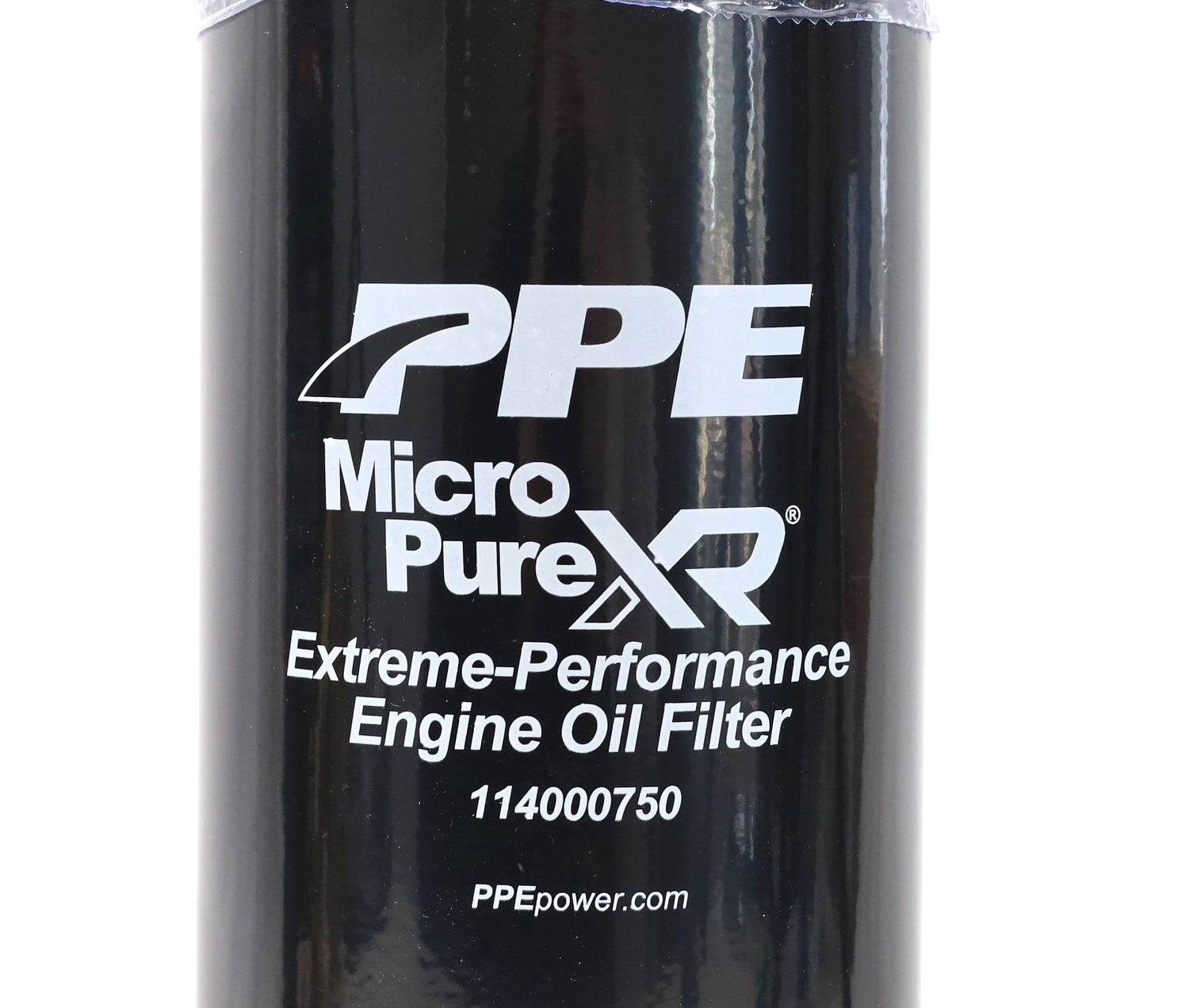

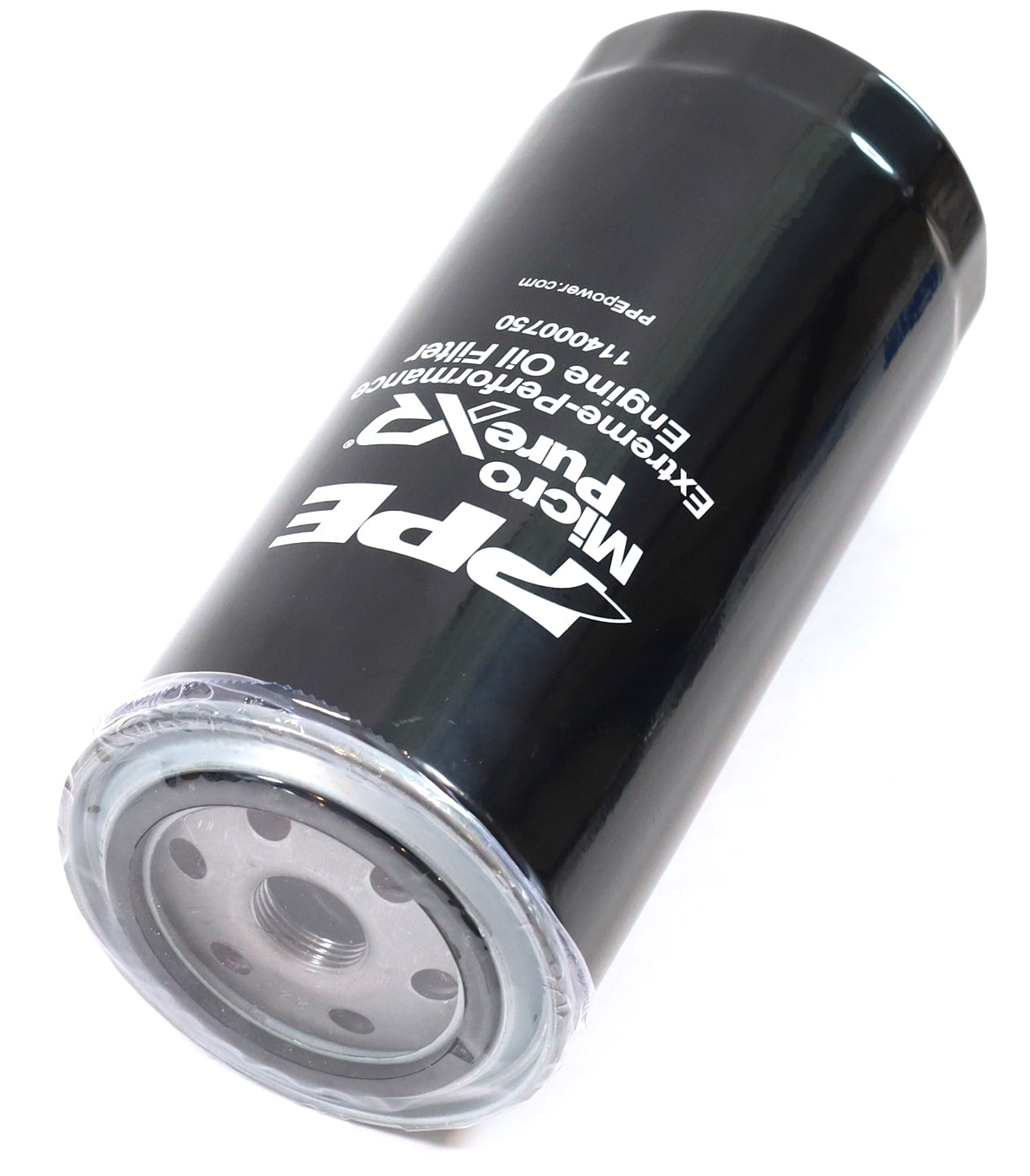

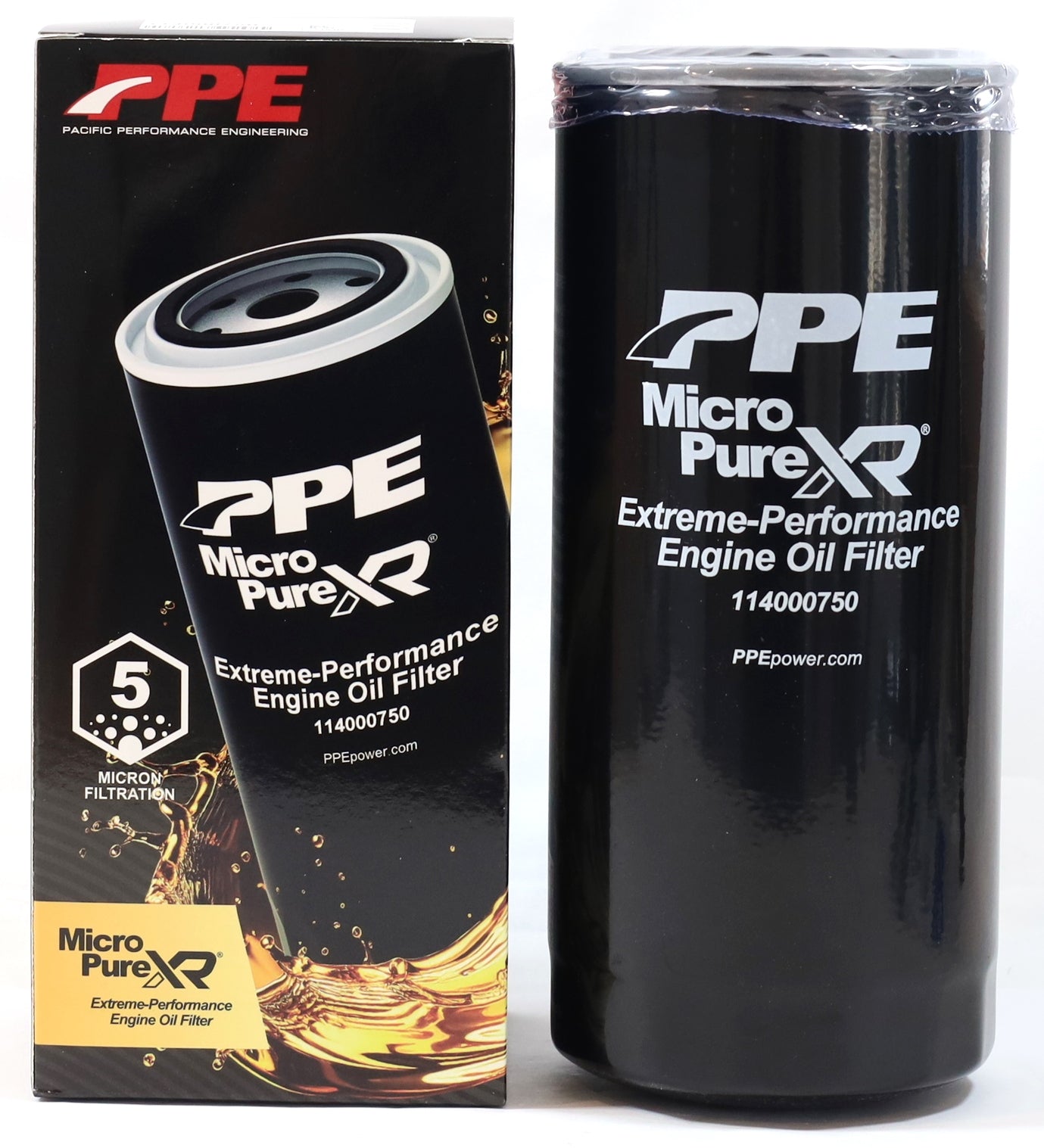

PPE 114000750 Premium High-Efficiency Deep Oil Filter 5 Micron 2020+ L5P Duramax

Upgrade your engine protection with the PPE 114000750 Premium High-Efficiency Deep Oil Filter, engineered to deliver superior filtration, increased capacity, and maximum durability for demanding diesel applications.

The oil filter is your engine’s first line of defense against contaminants that degrade oil performance and shorten engine life. This PPE high-performance filter significantly outperforms standard OEM filters with increased media size, finer filtration, and heavy-duty internal components.

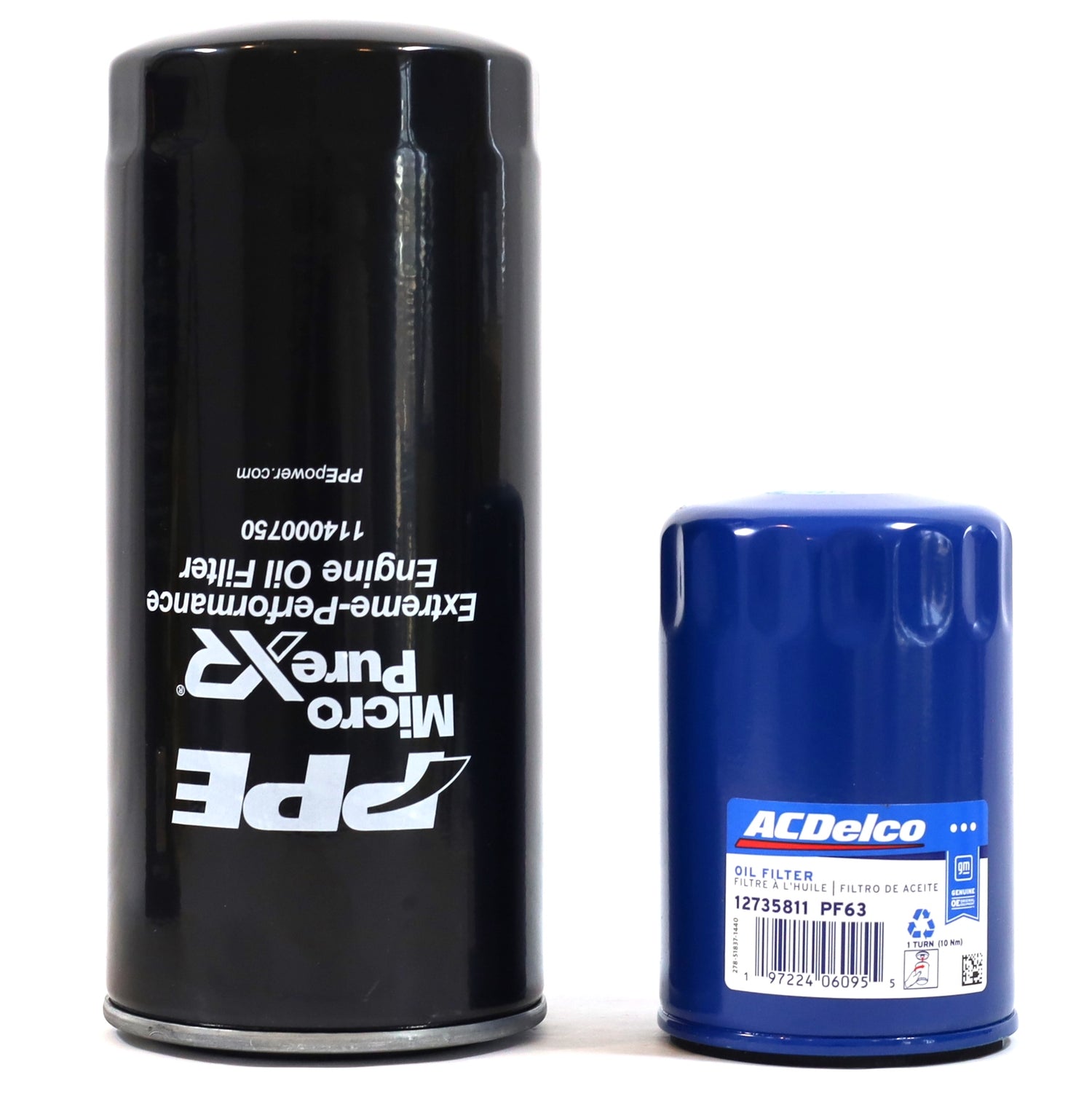

Performance Advantage Over OEM Filters:

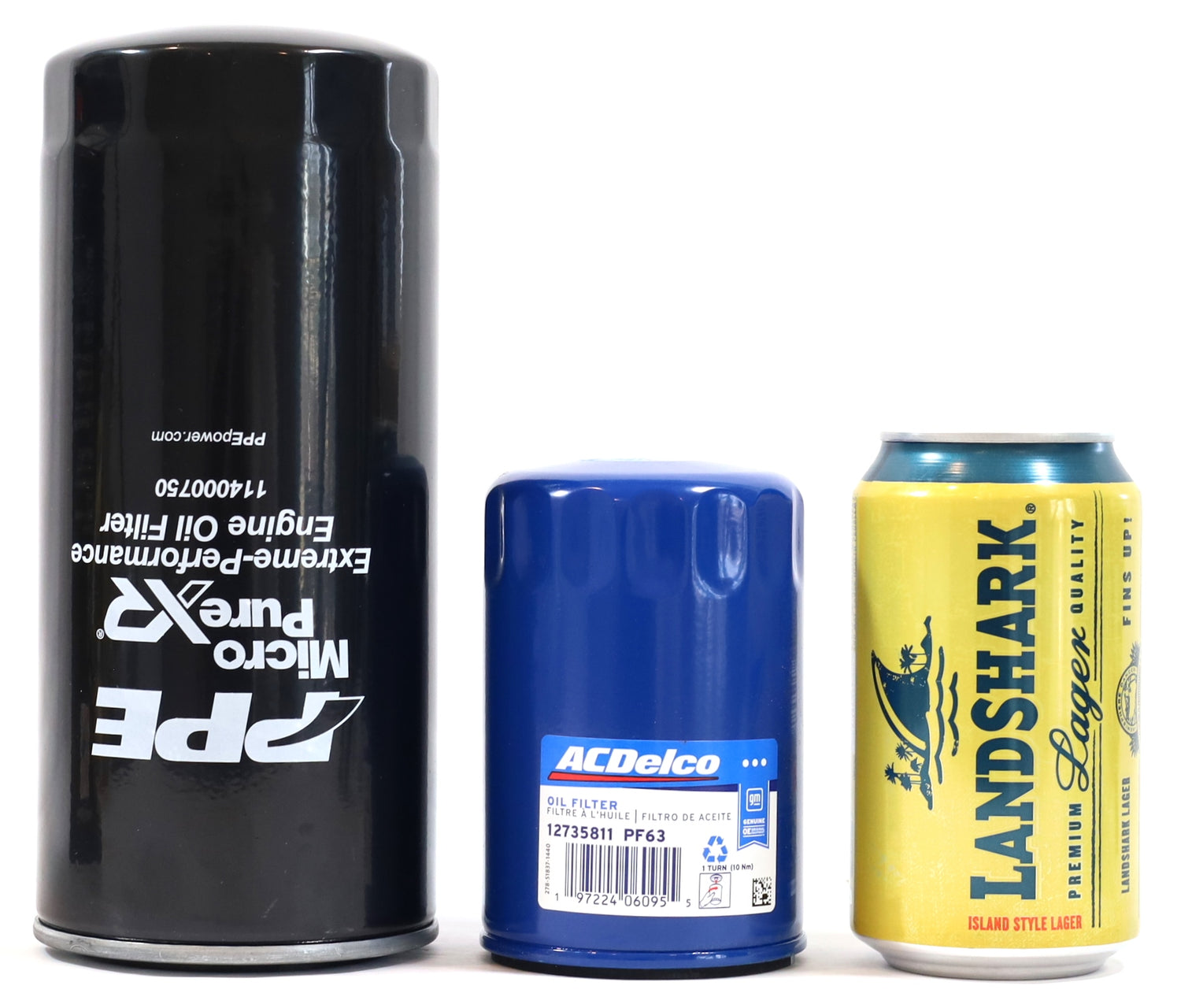

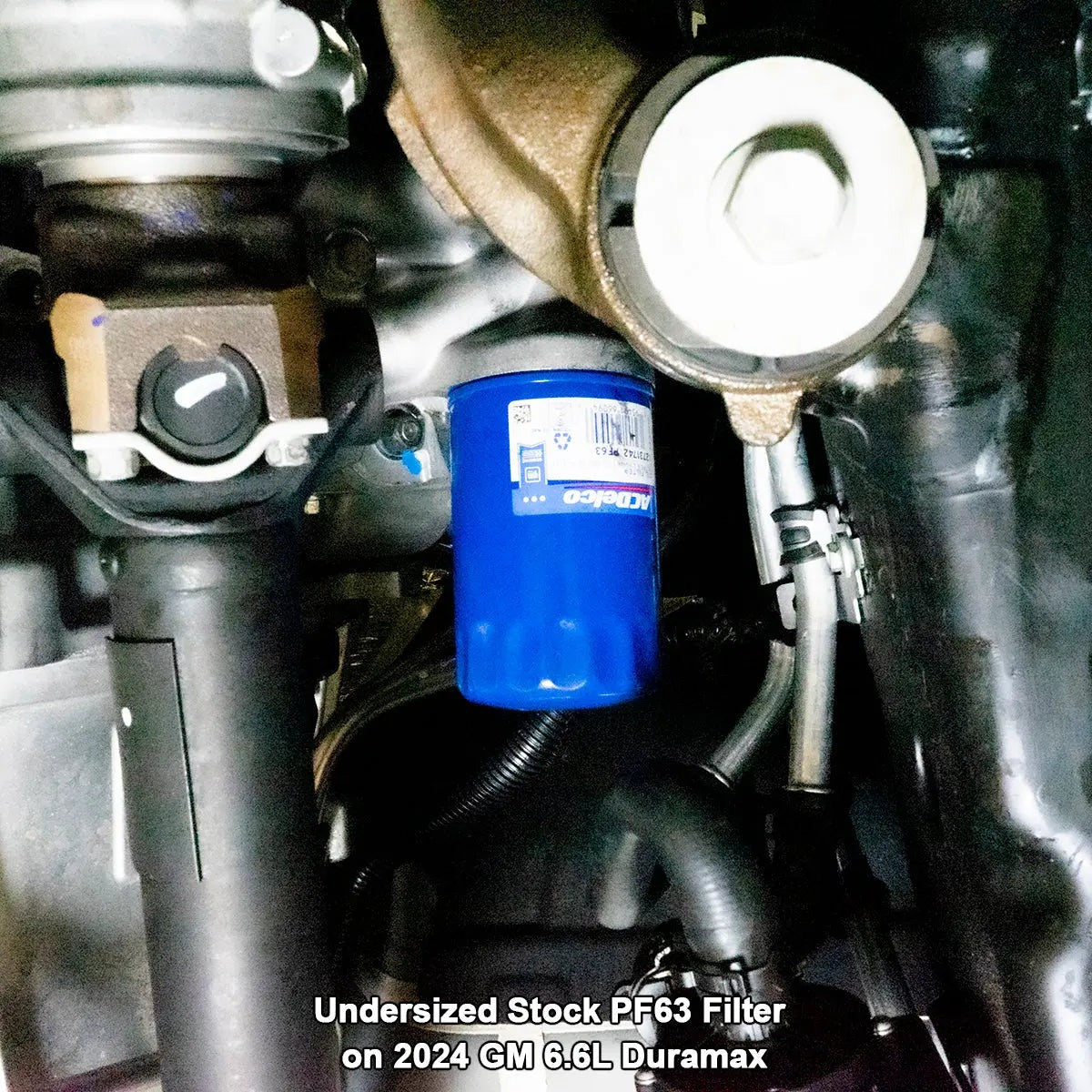

- Factory filters typically provide about 259 sq in of media with ~25-micron filtration.

The PPE filter delivers:
- 522 sq in filtration media (100% increase)
- 5-micron nominal filtration
- Magnetic particle capture
- Heavy-duty internal sealing components
- This results in cleaner oil, longer oil life, and improved engine protection.

Key Features:
- MicroPure XR® synthetic microfiber media — 5 micron rating
- 522 sq in filtration surface area
- Integrated high-temp neodymium magnet captures metal particles
- Built-in bypass valve with steel-NBR poppet
- Silicone anti-drainback valve prevents dry starts
- Heavy-duty coil spring prevents oil blow-by

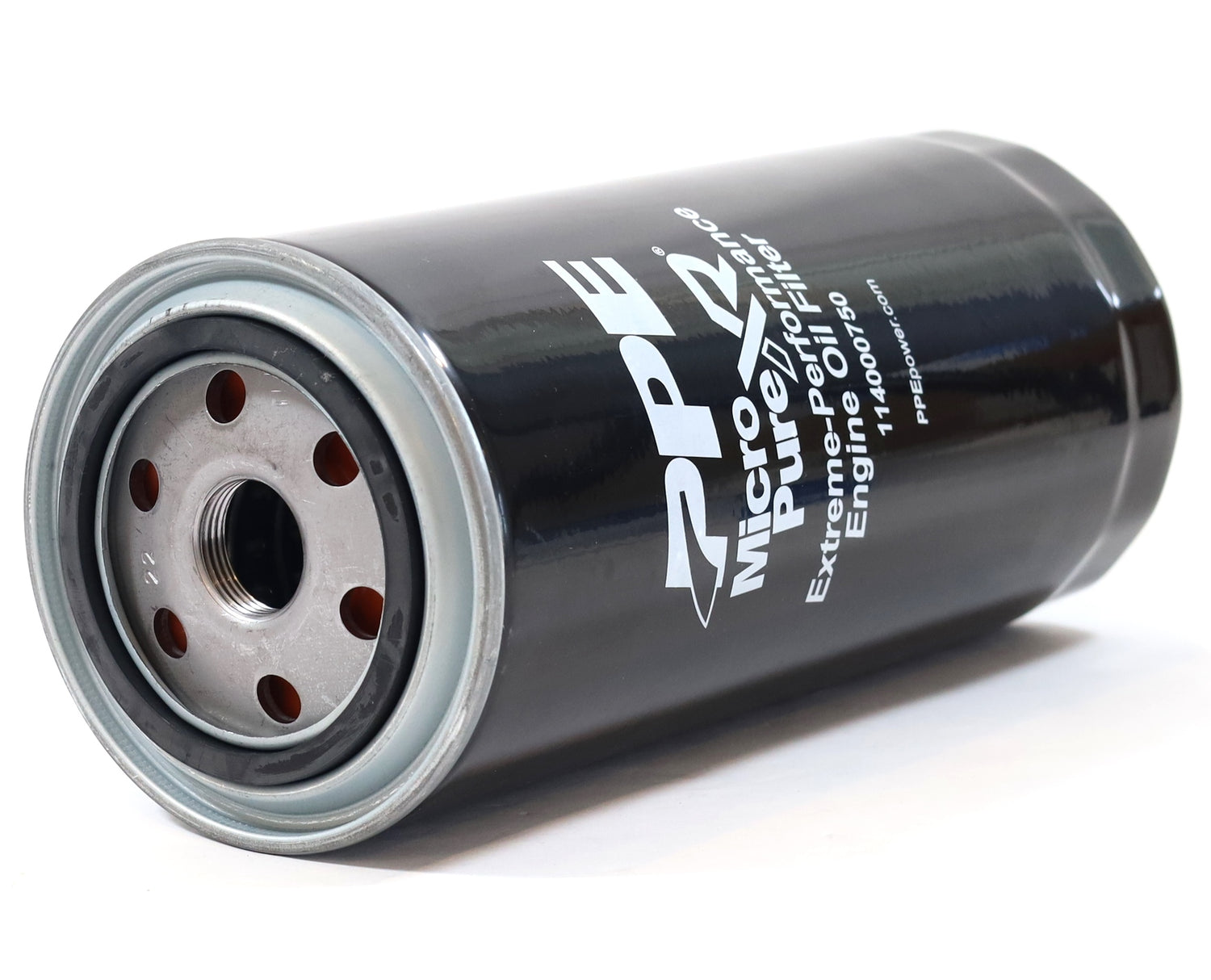

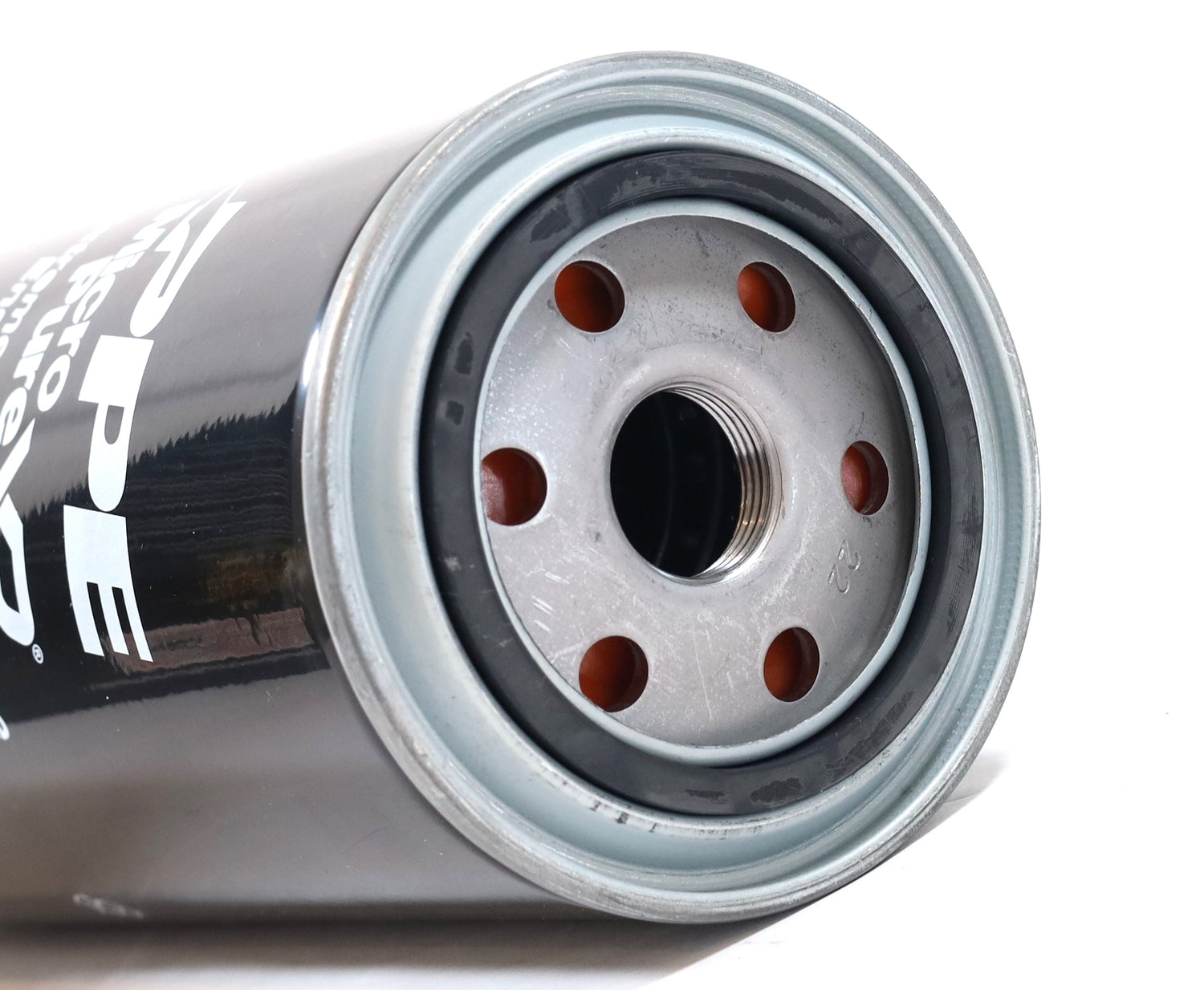

- Durable steel base plate with increased thread engagement
- Metal center tube for strength and pressure resistance
- Pleat-locking spiral bead ensures even media spacing
- TorqSTOP™ design prevents over-tightening
- Burst pressure rating: 450 PSI

Important Installation Note: Installation of this deep filter requires PPE Fuel Coolant Pump Relocation Kit (Part #114002700) for proper clearance.

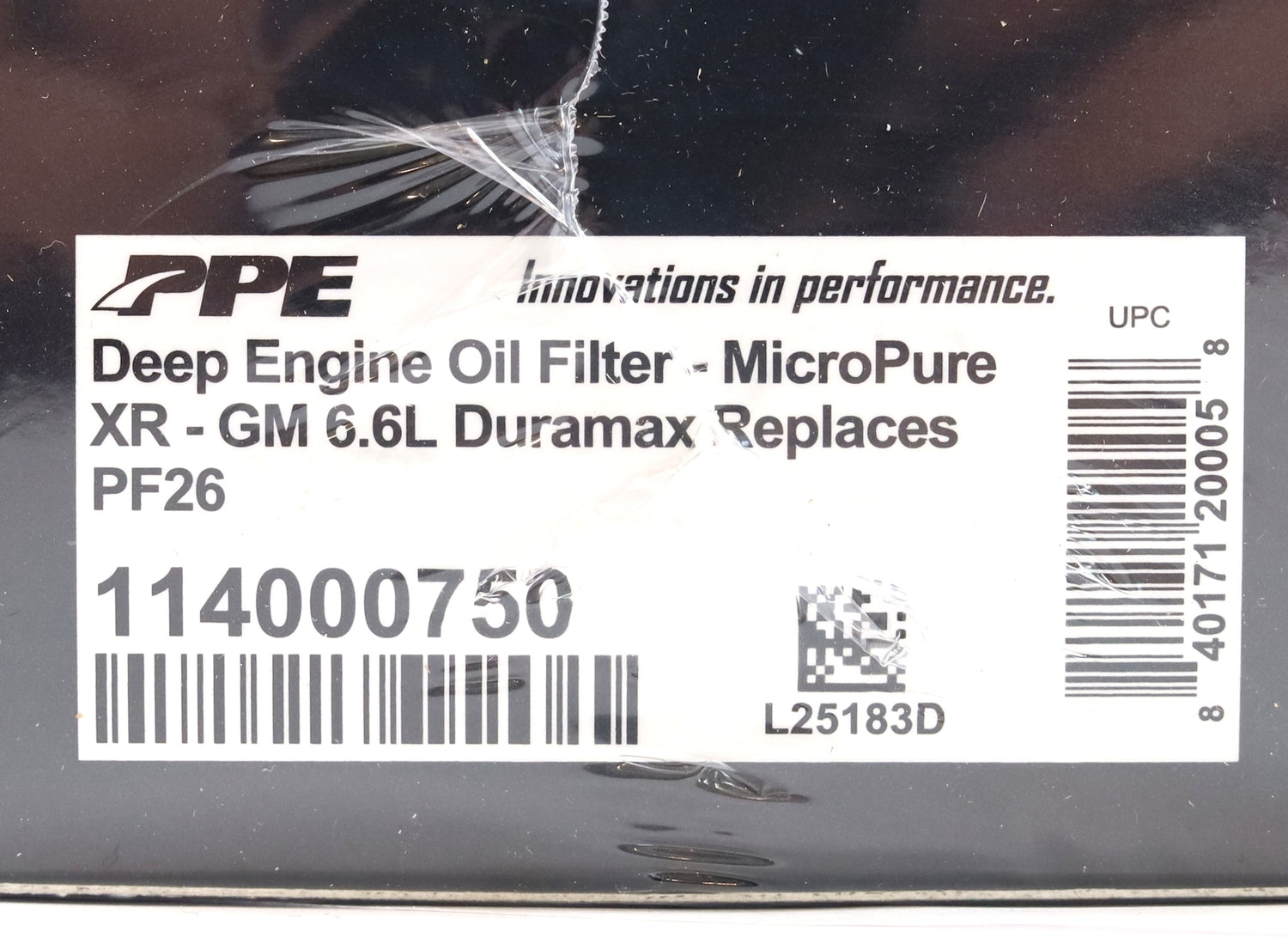

Part Information:
Manufacturer: PPE
Part Number: 114000750
GTIN: 840171200058
OEM Cross Reference: PF26, PF63, FL-820-S, MO-899

Fitment:
2020–2026 Chevrolet Silverado 2500HD / 3500HD – L5P Duramax
2020–2026 GMC Sierra 2500HD / 3500HD – L5P Duramax
