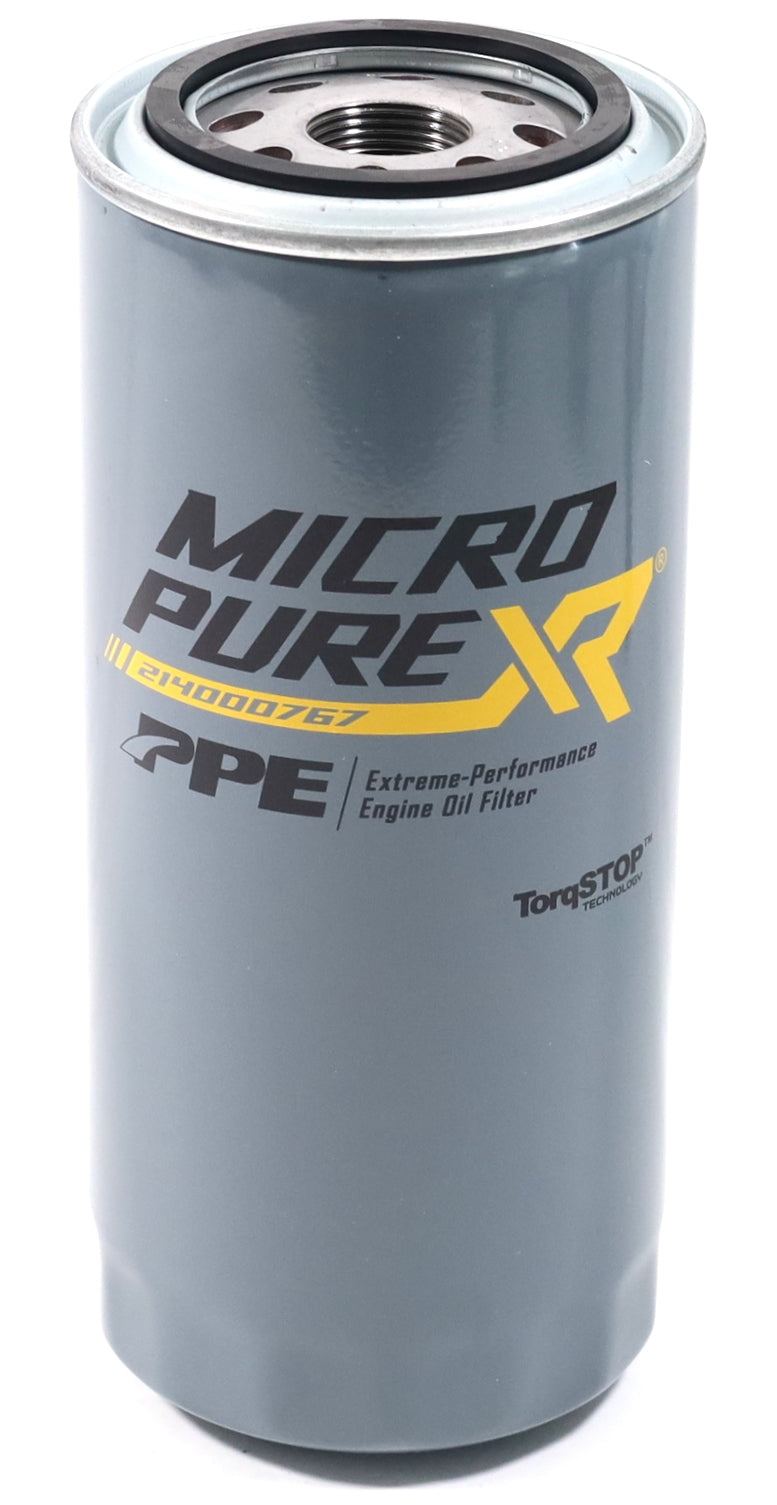

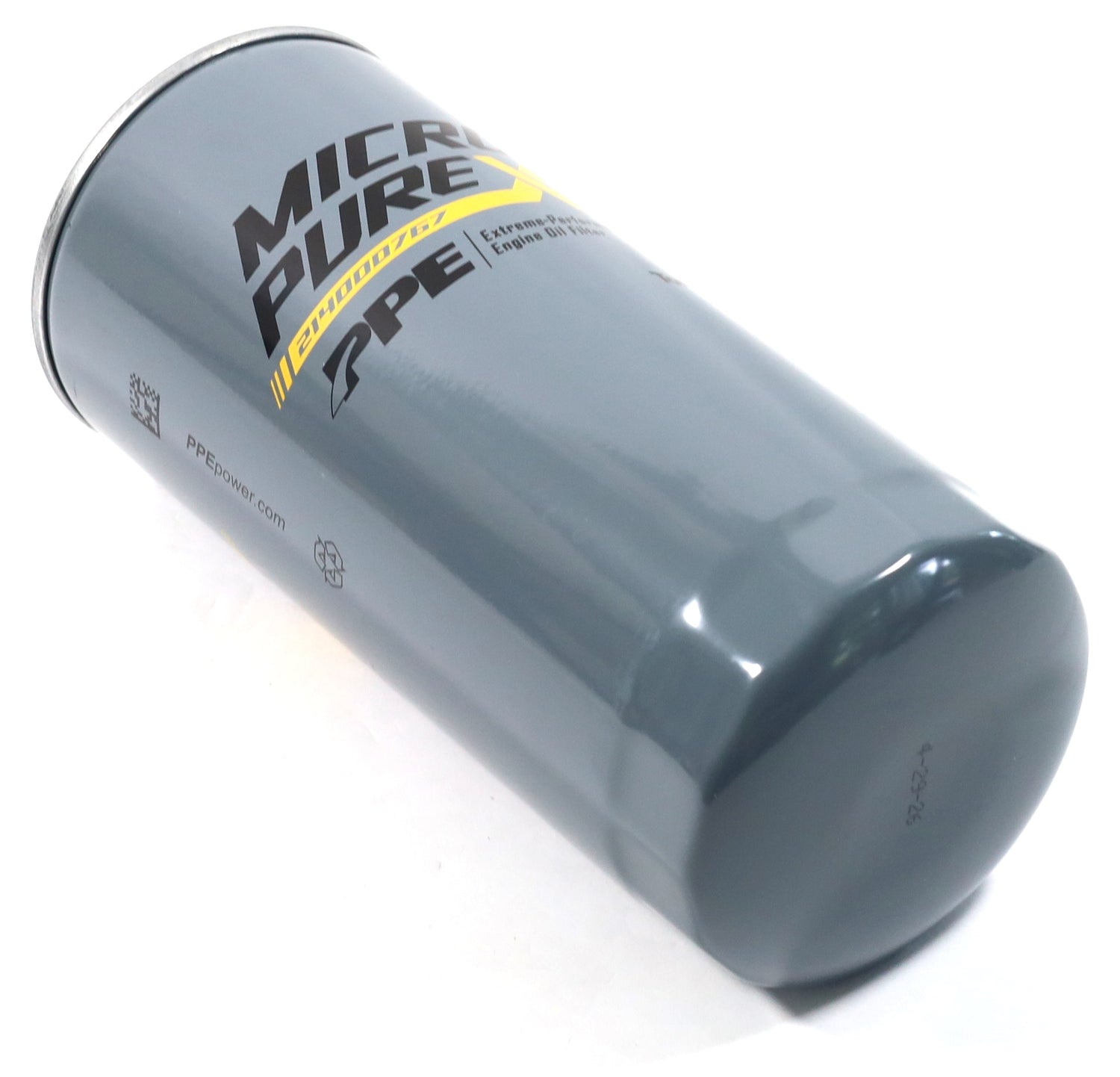

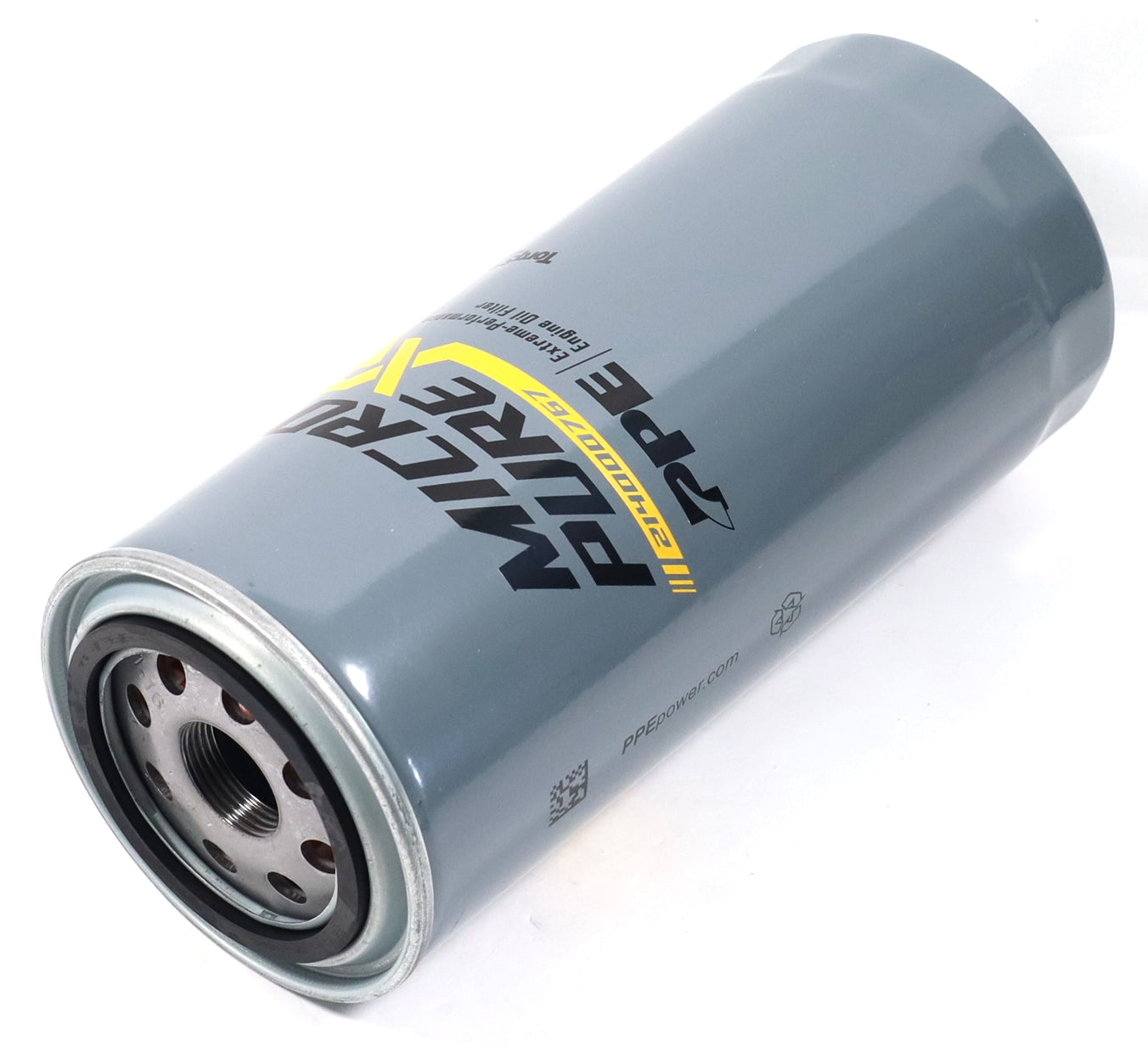

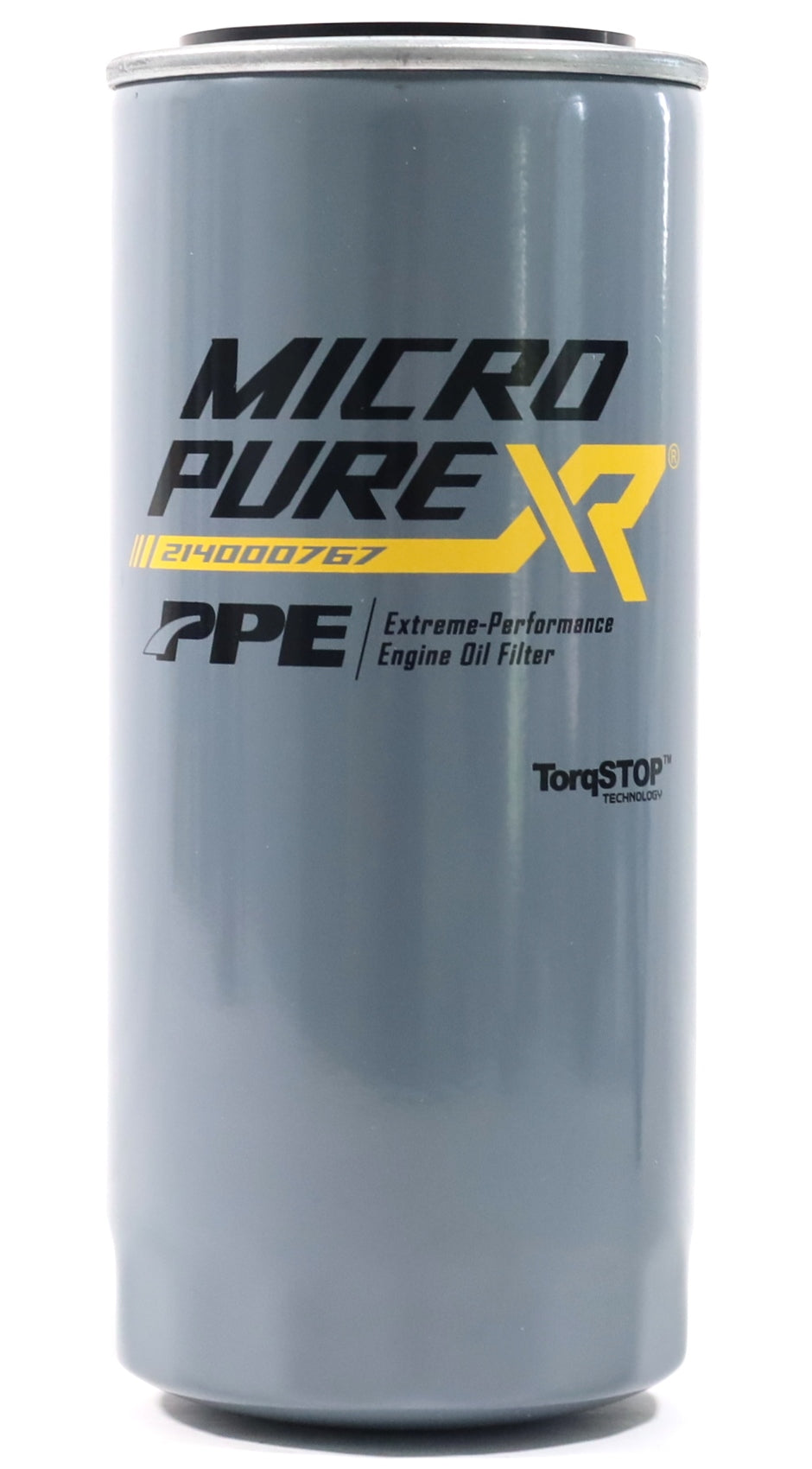

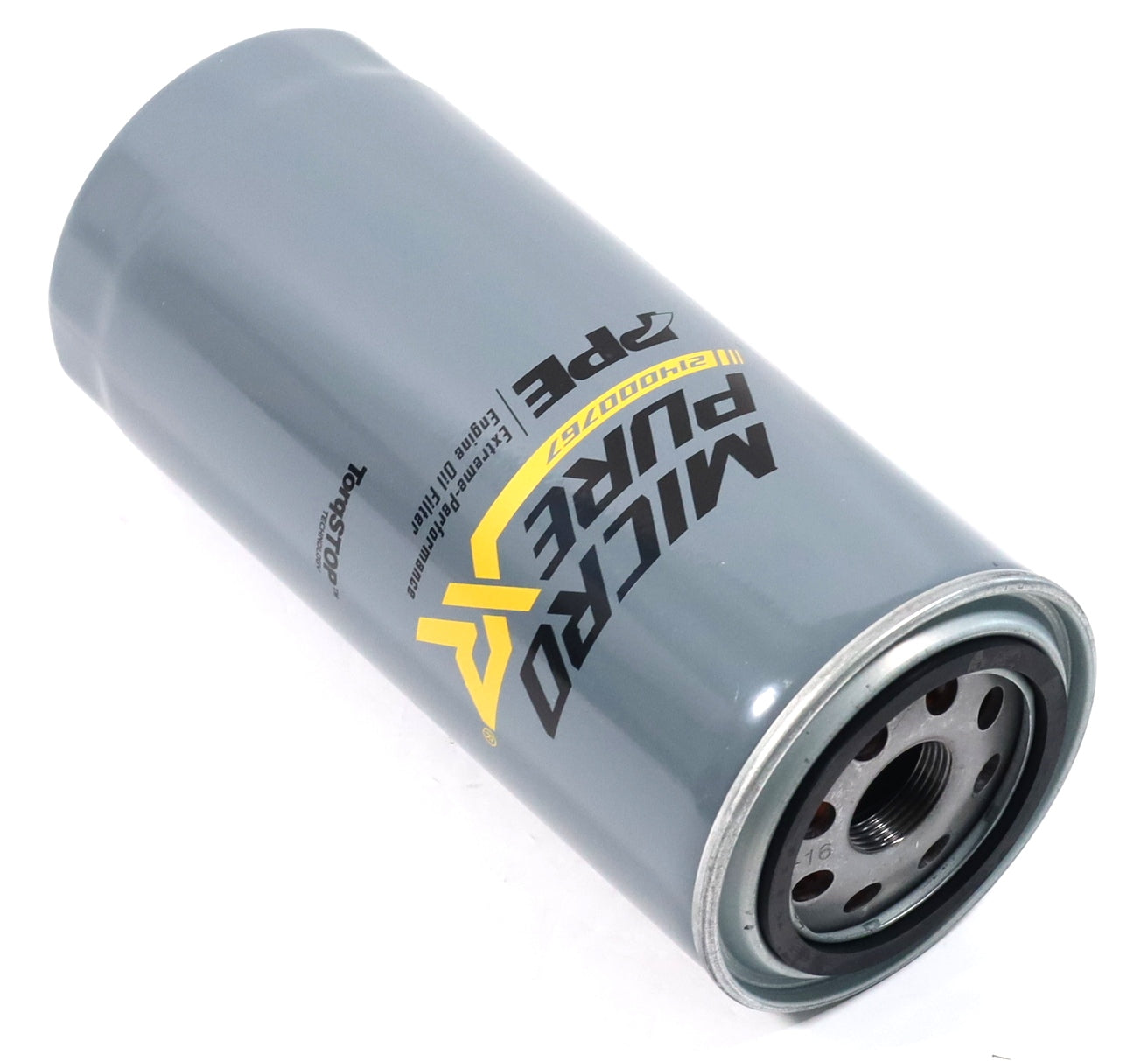

PPE 214000767 MicroPure 5 Micron Oil Filter 1989-2024 5.9L 6.7L Cummins Diesel

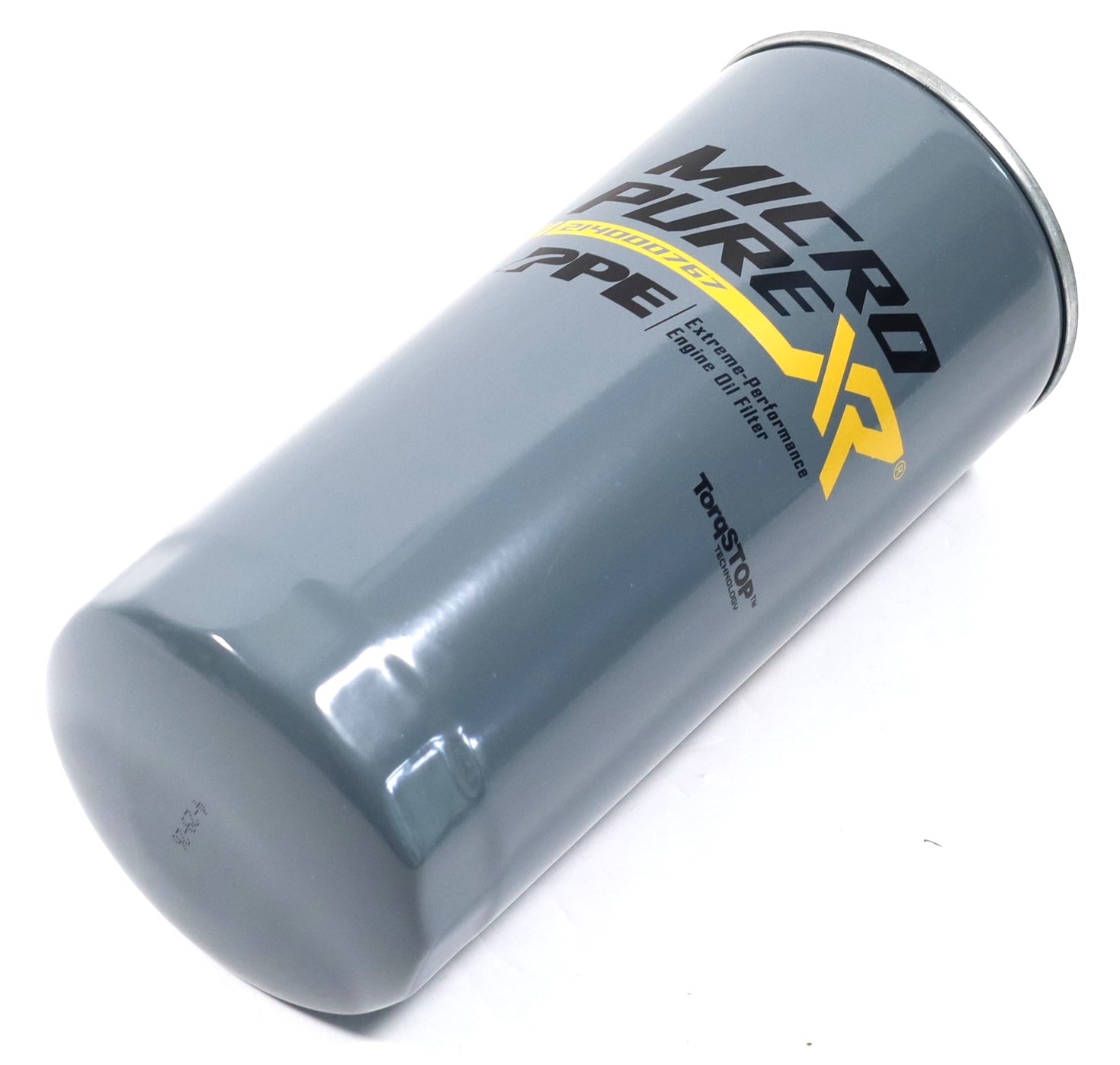

Upgrade your engine protection with the PPE MicroPure® XR Engine Oil Filter, part number 214000767, a direct replacement for the factory oil filter on 1989–2024 Dodge/Ram 5.9L and 6.7L Cummins diesel engines.

Unlike the factory filter, the PPE MicroPure XR utilizes advanced 5-micron synthetic microfiber media, significantly improving contaminant removal while increasing filtration area by 21%. The result is cleaner oil, improved engine protection, and extended oil and filter life.

An integrated high-temperature neodymium magnet captures harmful ferrous metal particles before they circulate through your engine, providing another level of protection unavailable in standard replacement filters.

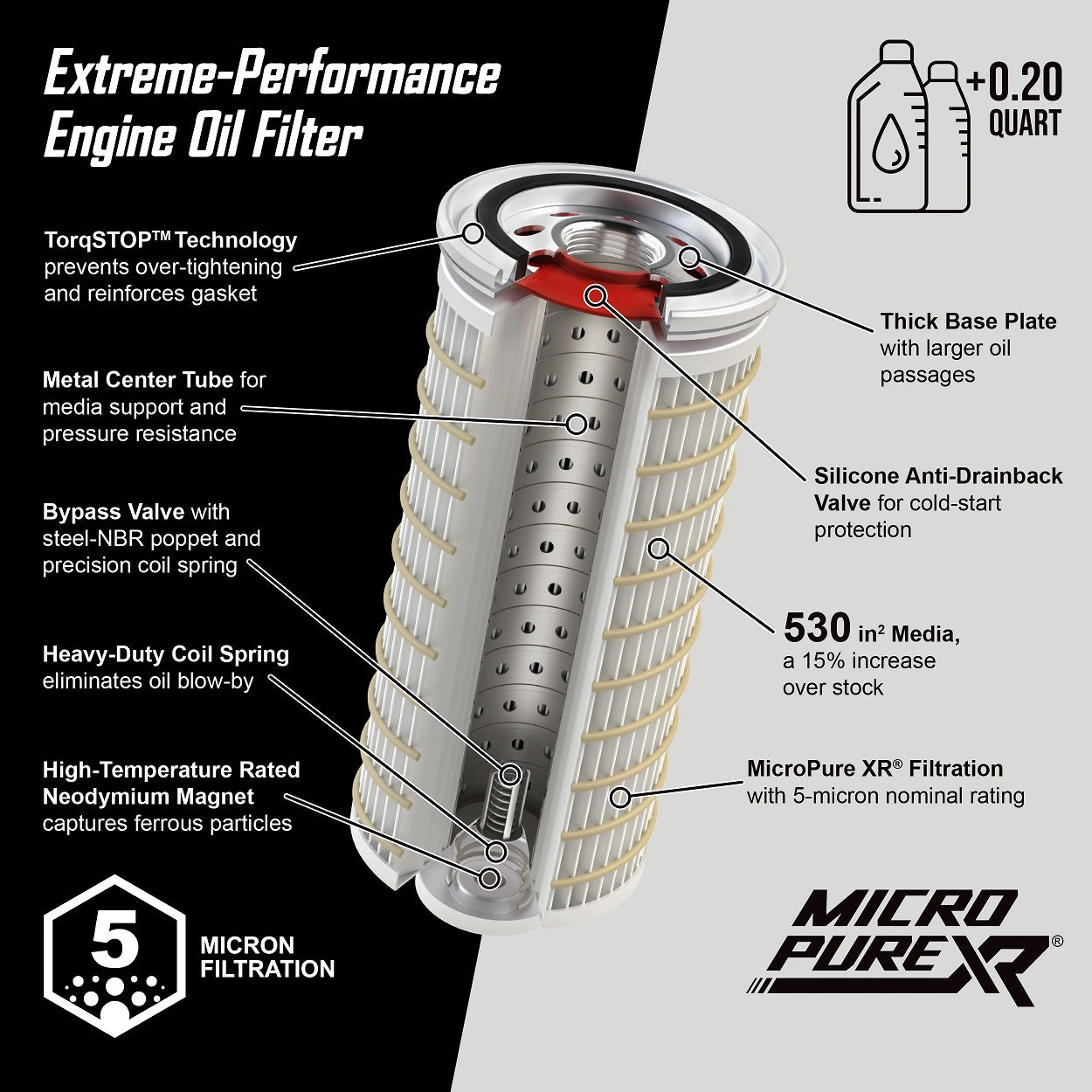

Built from the ground up for severe-duty use, the PPE filter features a heavy-duty steel base plate, metal center tube, silicone anti-drainback valve, precision bypass valve, reinforced coil spring, and PPE's exclusive TorqSTOP Technology for exceptional durability and sealing performance.

Why Upgrade to the PPE MicroPure XR?

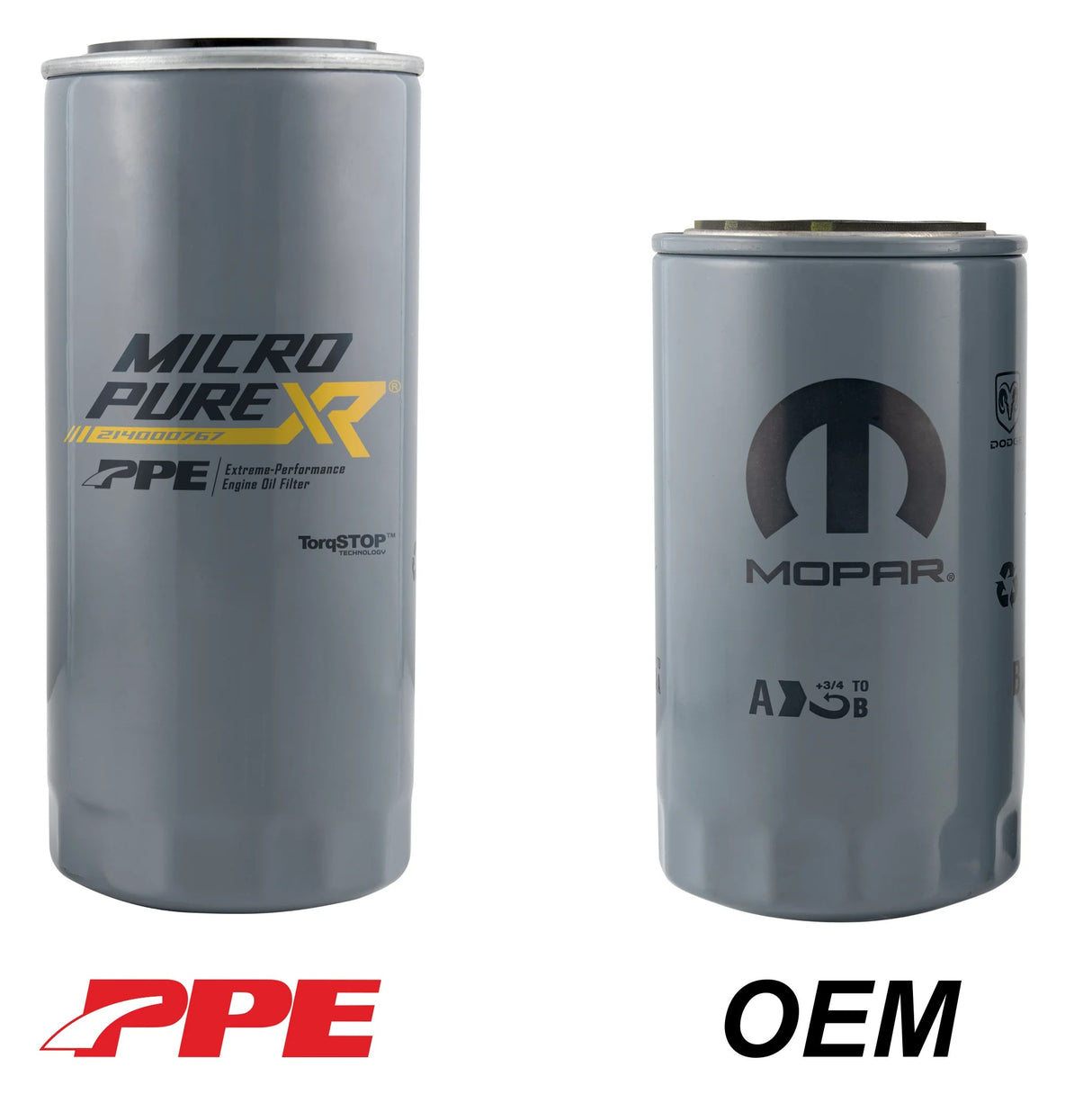

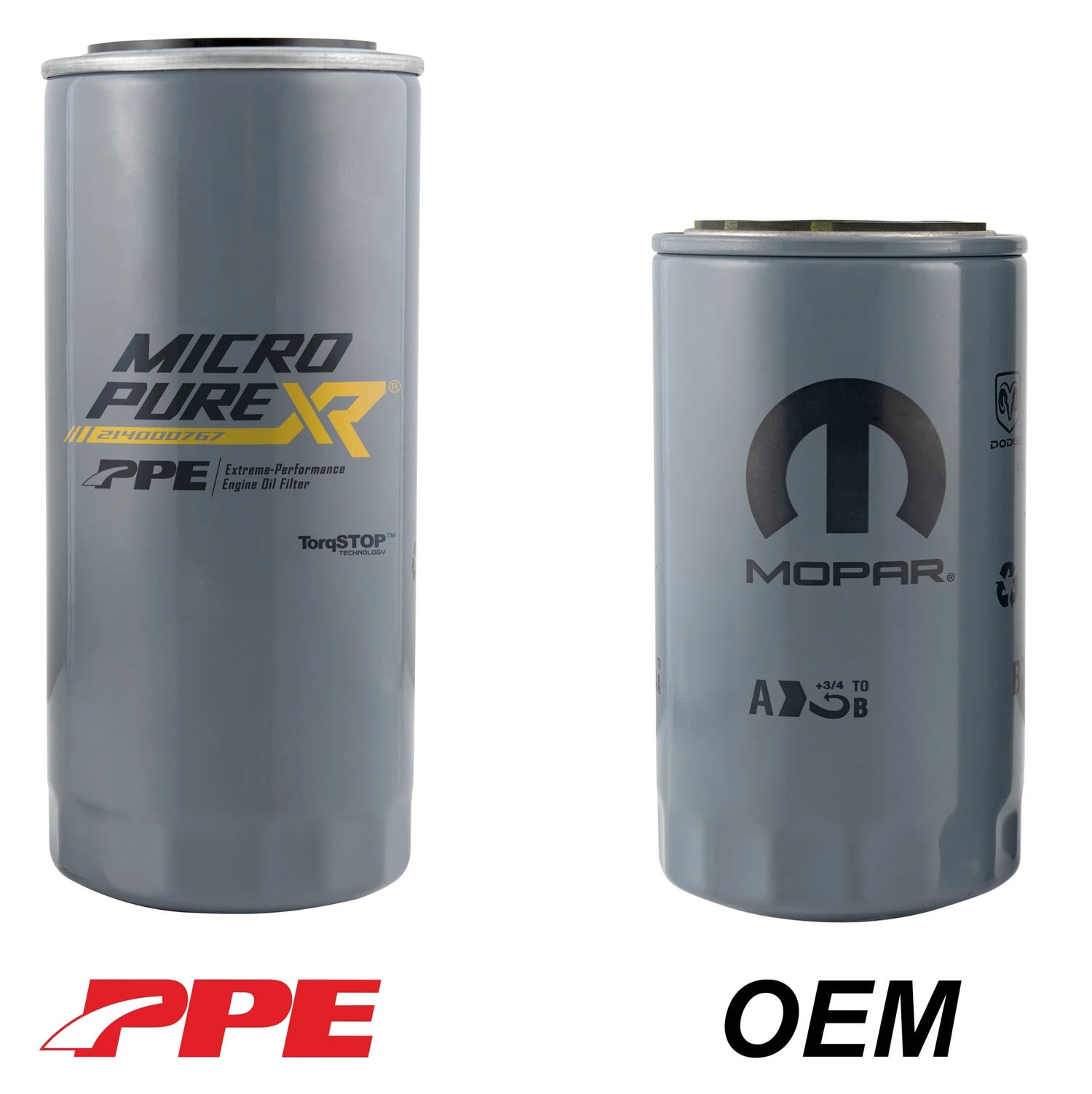

Compared to the OEM Mopar filter:
- OEM Filter: 460 sq. in. of 20-micron filtration media
- PPE MicroPure XR: 552 sq. in. of 5-micron synthetic media
- 21% More Filtration Area
- 4x Finer Filtration
- 3x Greater Dirt Holding Capacity

The PPE filter also replaces the factory leaf spring with a heavy-duty coil spring to eliminate dirty oil bypass while improving sealing between the filter media and base plate.

Features & Benefits:
- MicroPure® XR synthetic microfiber media
- 5-micron nominal filtration
- 552 square inches of filtration media
- 21% more filtration area than OEM
- 3x greater dirt holding capacity
- Integrated high-temperature neodymium magnet captures ferrous debris

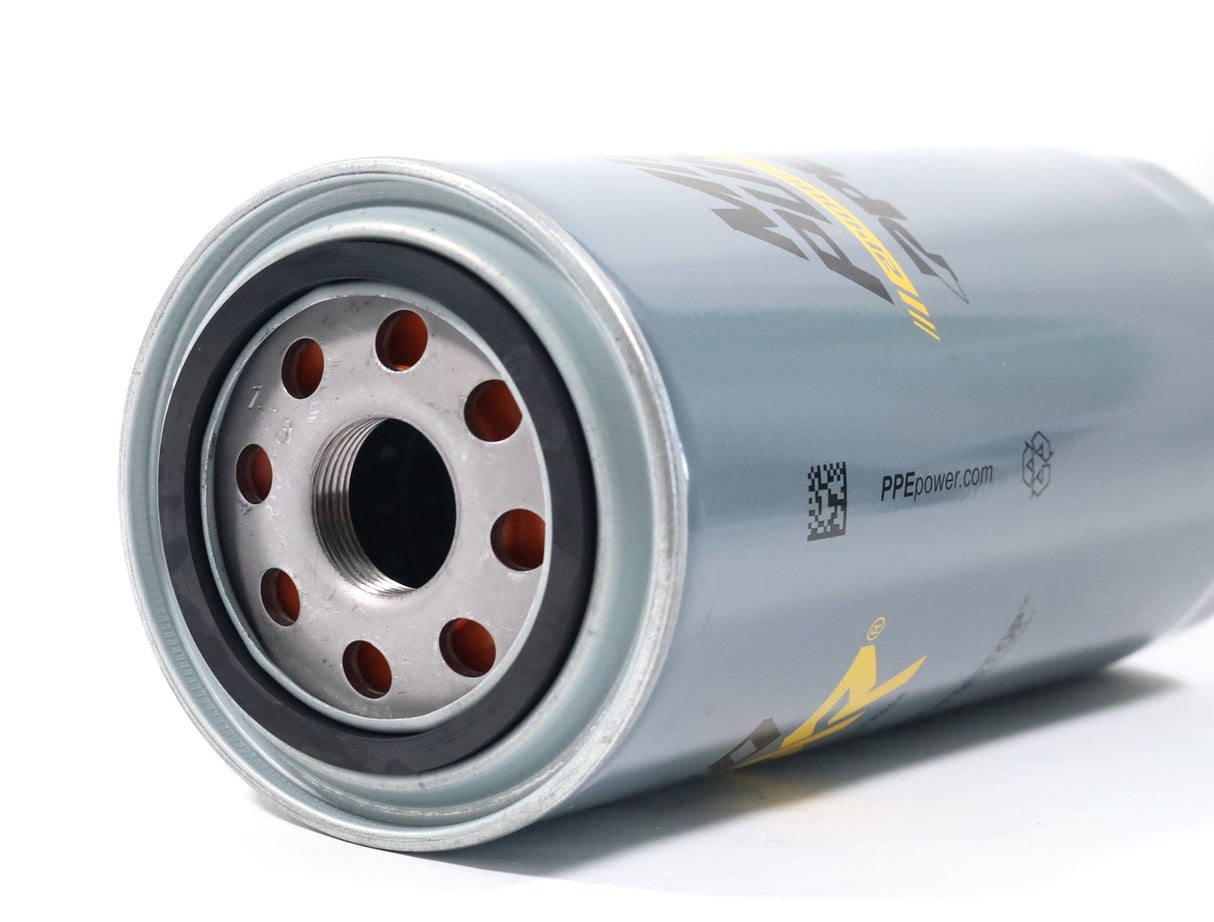

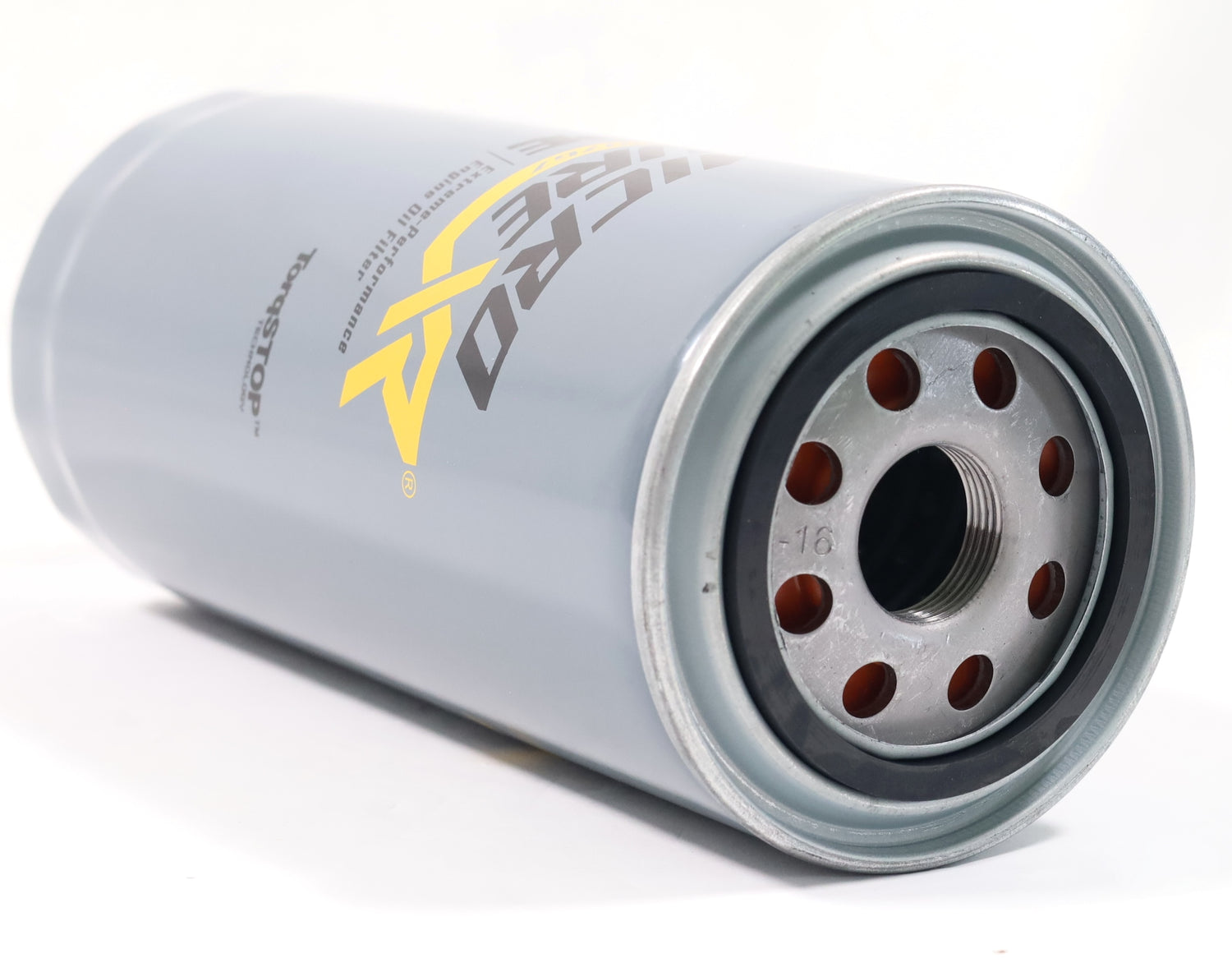

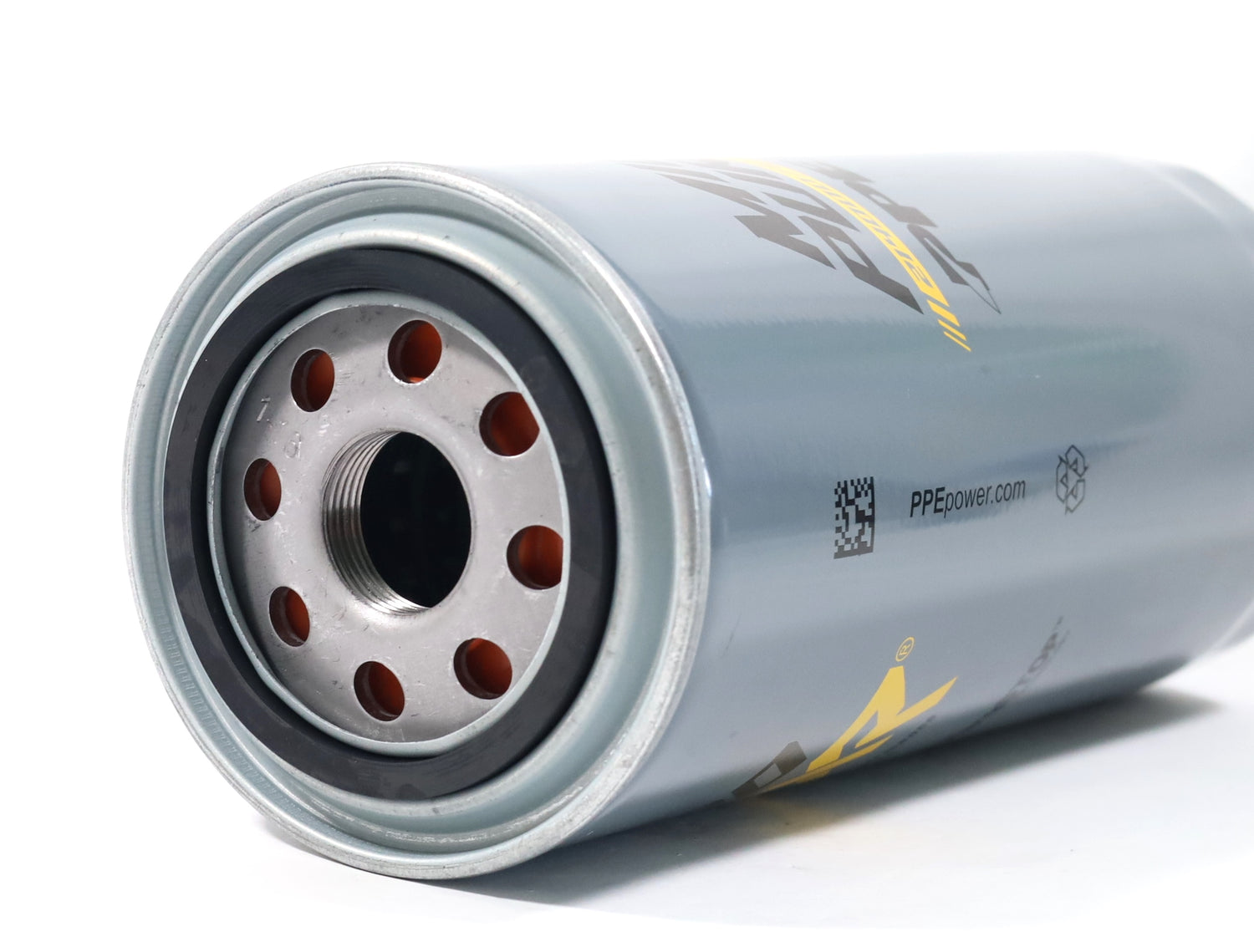

- Heavy-duty steel base plate with large oil passages
- Metal center tube for superior strength
- Heat-resistant silicone anti-drainback valve
- Precision bypass valve with steel-NBR poppet
- Heavy-duty coil spring prevents dirty oil blow-by
- Pleat-locking spiral bead maintains even media spacing

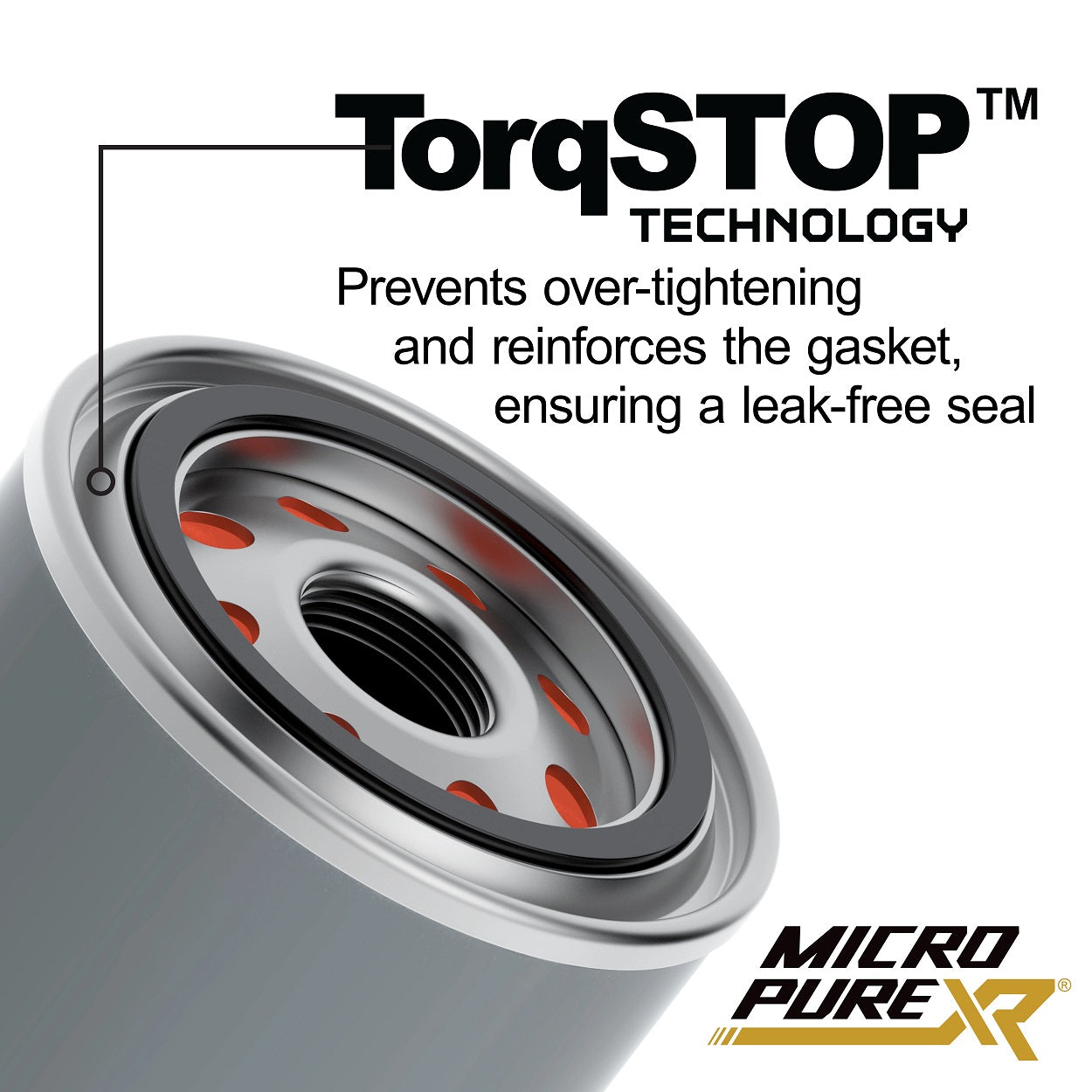

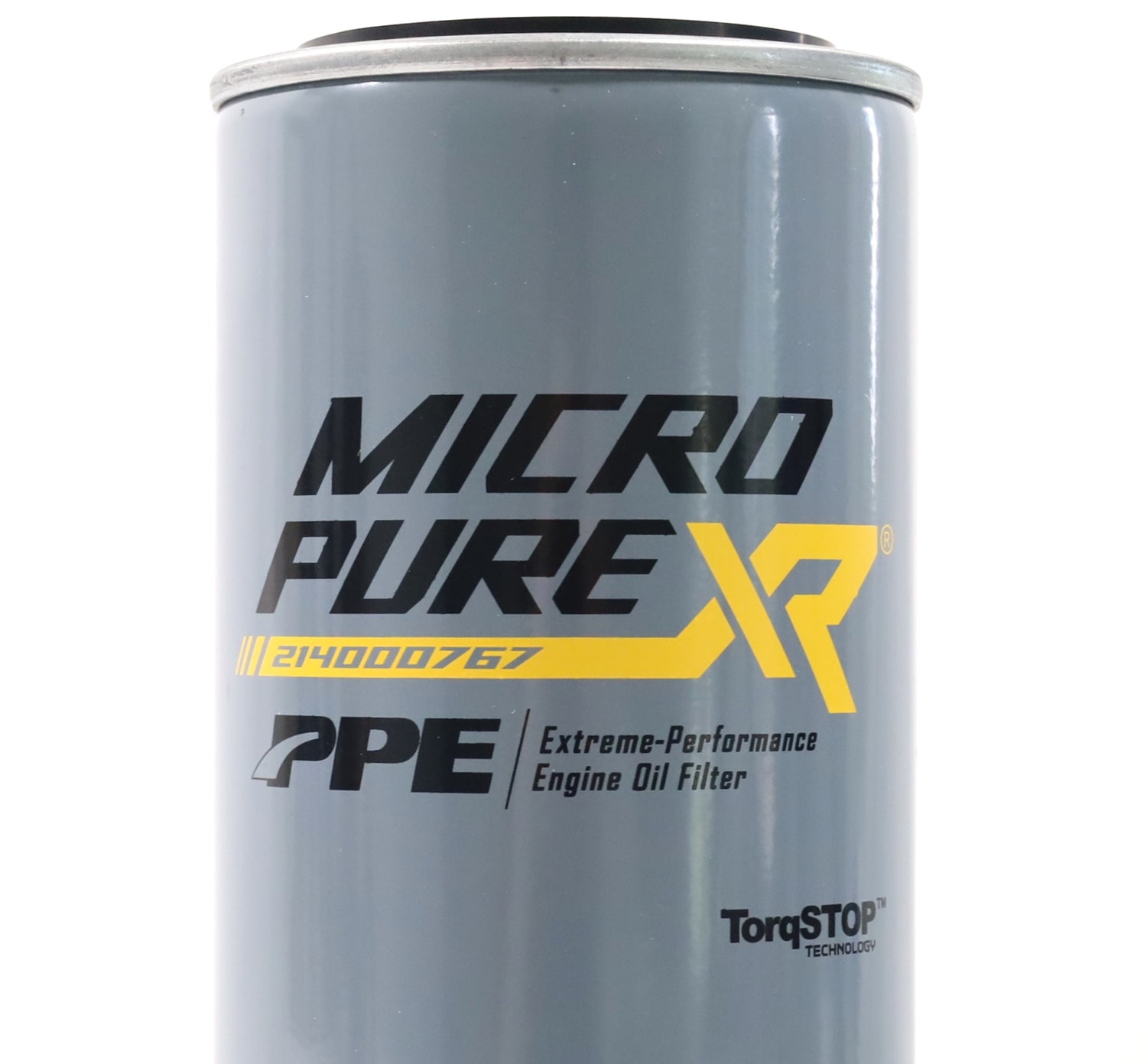

- PPE TorqSTOP Technology helps prevent overtightening
- Burst pressure rating of 450 PSI
- Direct spin-on replacement

Fitment:
1989–2007 Dodge Ram 2500 / 3500 5.9L Cummins
2007.5–2010 Dodge Ram 2500 / 3500 / 4500 / 5500 6.7L Cummins

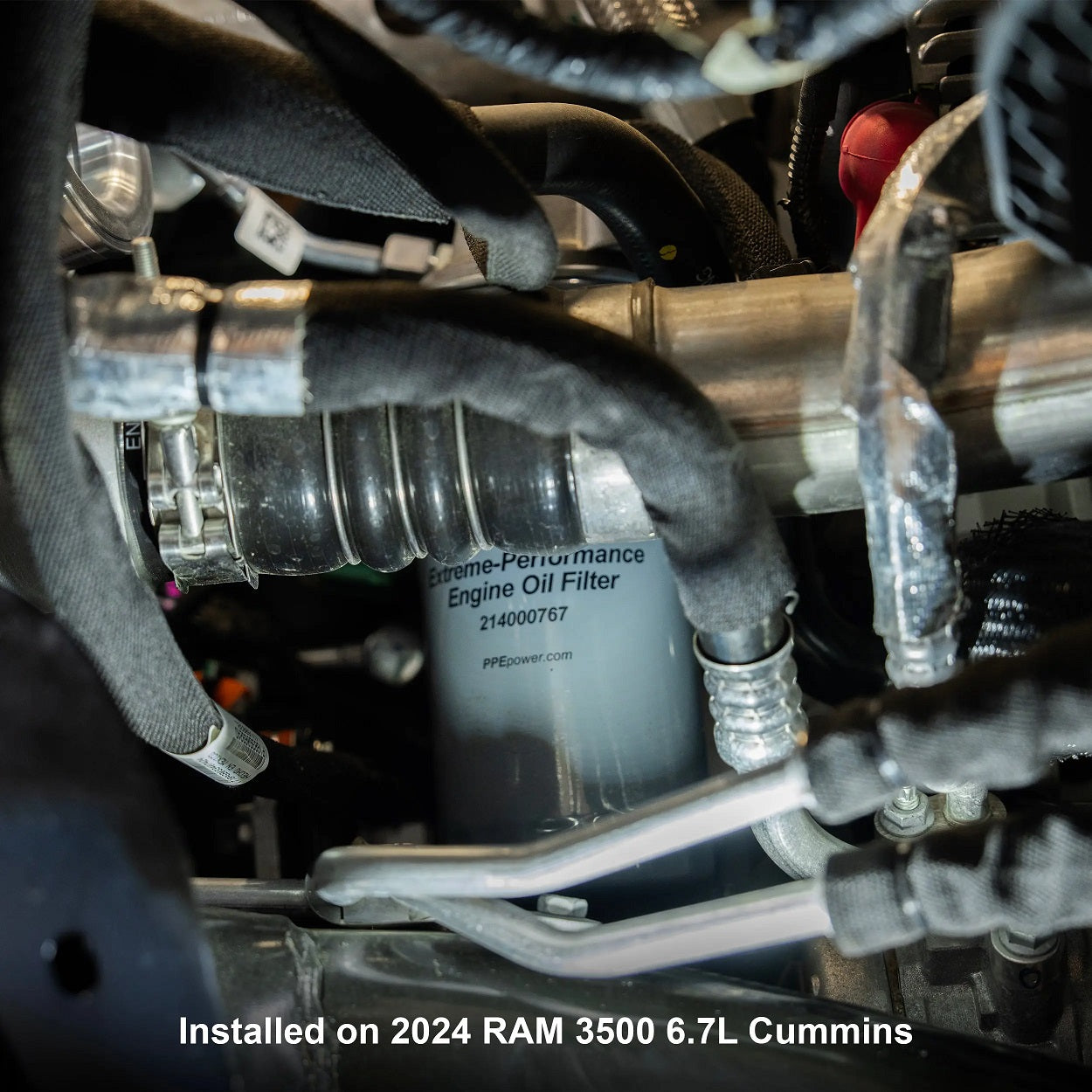

2011–2024 Ram 2500 / 3500 / 4500 / 5500 6.7L Cummins

Replaces OEM Part Numbers:
Mopar: 5016547AA, 5016547AB, 5016547AC, 68048553AA, 68086920AA, 4429618, 5083285AA
Cummins: 3949561, 3937695
Motorcraft: FL896
Purolator: L45335
ACDelco: PF1070
Fleetguard: LF3972, LF16035
